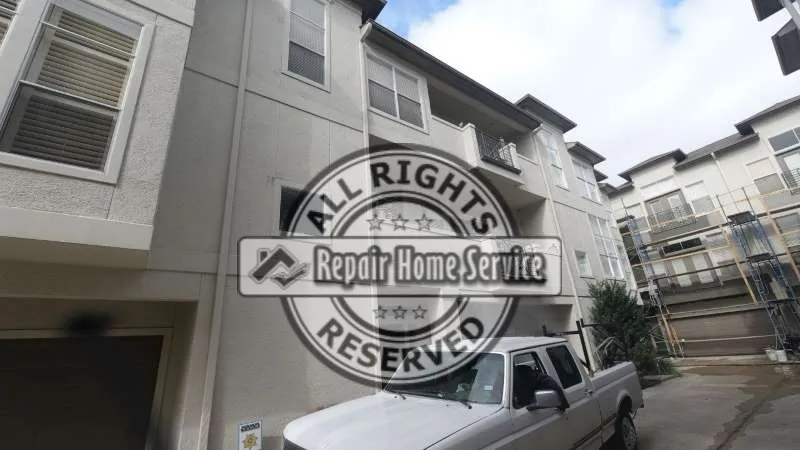

Front elevation of Houston TX townhouse showing exterior stucco façade prior to repair of hidden water intrusion and structural porch damage.
Stucco Repair, Structural Beam Replacement & Patio Waterproofing
Investigated and corrected a concealed water intrusion issue affecting the front porch ceiling and structural framing of a multi-story residence in Houston, TX 77064. Work included selective demolition of damaged stucco assemblies, removal of deteriorated framing and sheathing, temporary structural shoring, replacement of the primary front beam and associated framing members, reconstruction of affected soffit and stucco components, waterproofing of the upper-level patio assembly, restoration of exterior finishes, and full façade coating with a 100% acrylic elastomeric paint system designed to help protect against future moisture intrusion.

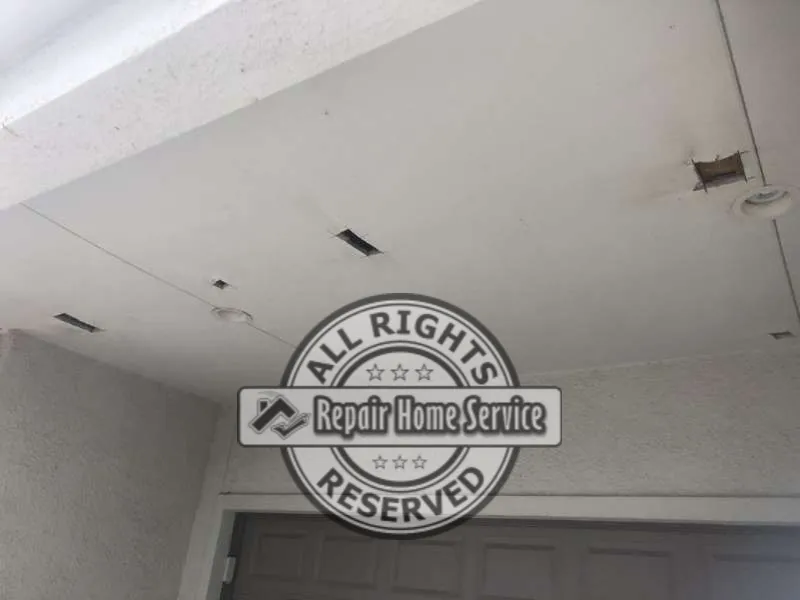

Interior view of front porch ceiling with recessed light fixture where water leakage was first observed in Houston TX home.

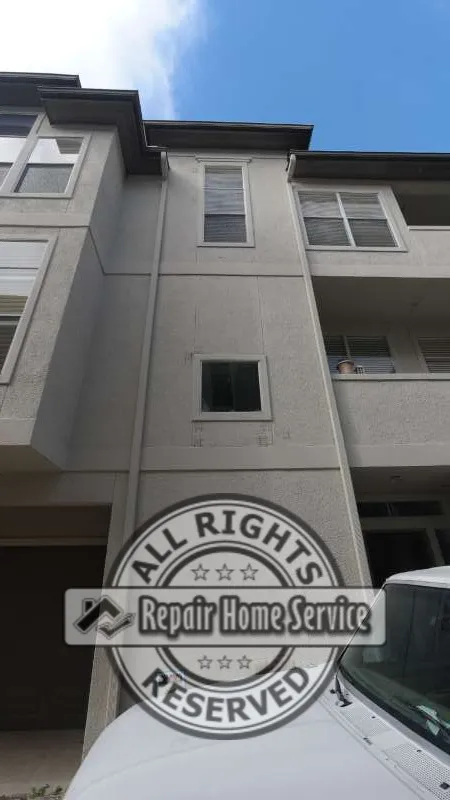

Exterior overview of multi-story stucco residence before structural repairs and waterproofing work in Houston Texas.
Stucco Repair, Structural Beam Replacement & Patio Waterproofing 04

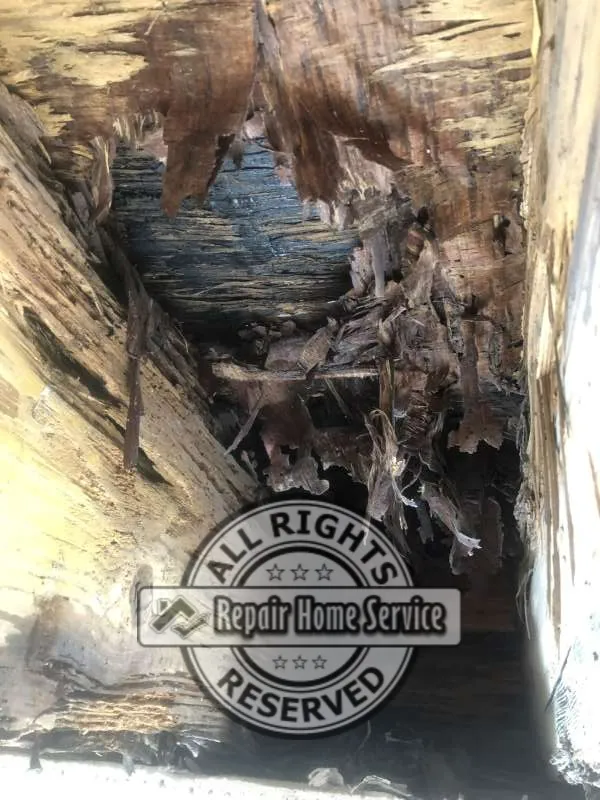

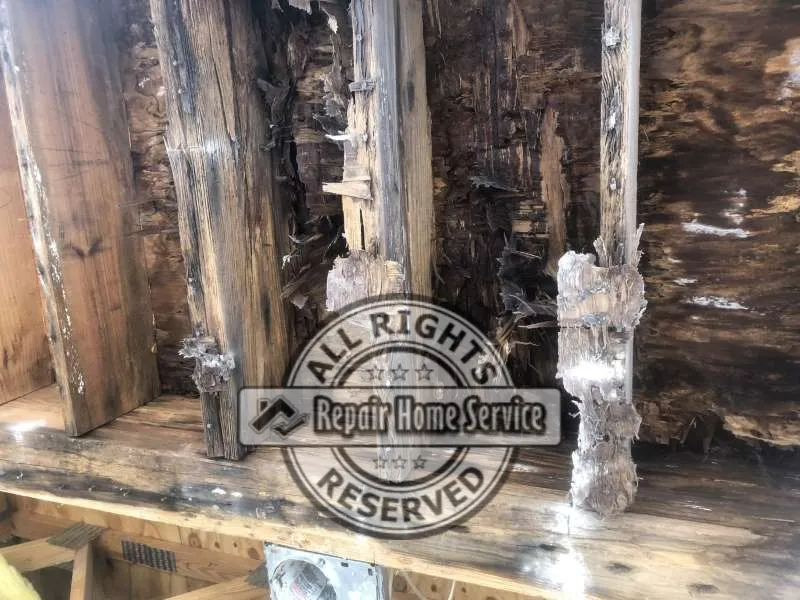

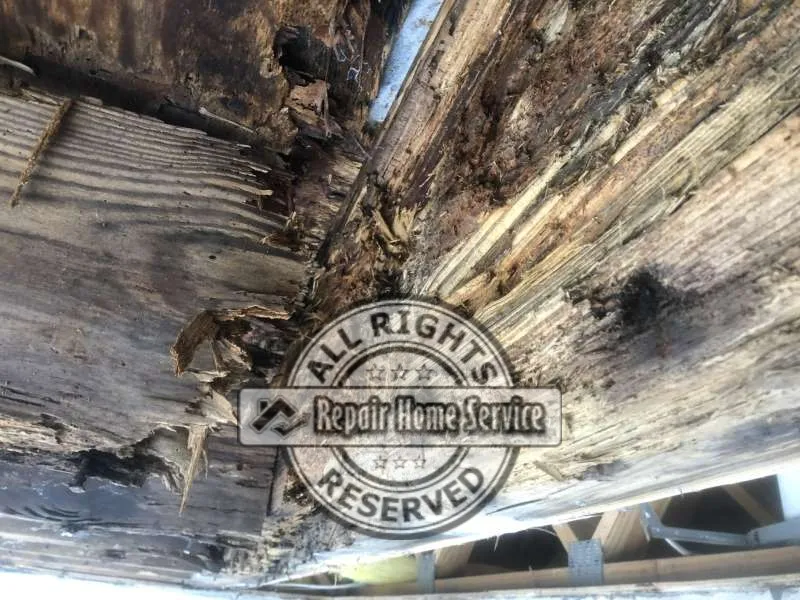

Close-up of severe wood rot and moisture damage inside concealed porch framing beneath stucco exterior.

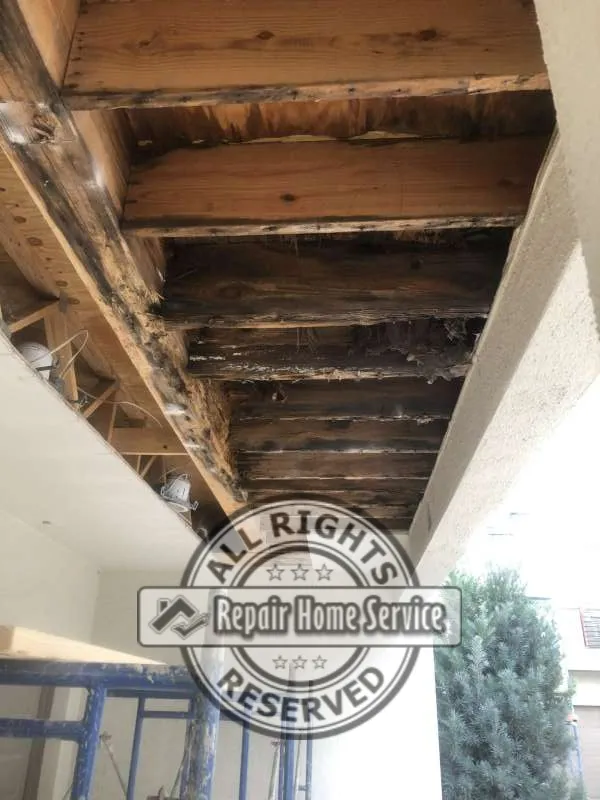

Deteriorated structural framing and water-damaged sheathing exposed during leak investigation and repair work.
Extensive hidden rot discovered within exterior framing cavity after removal of stucco and soffit materials.

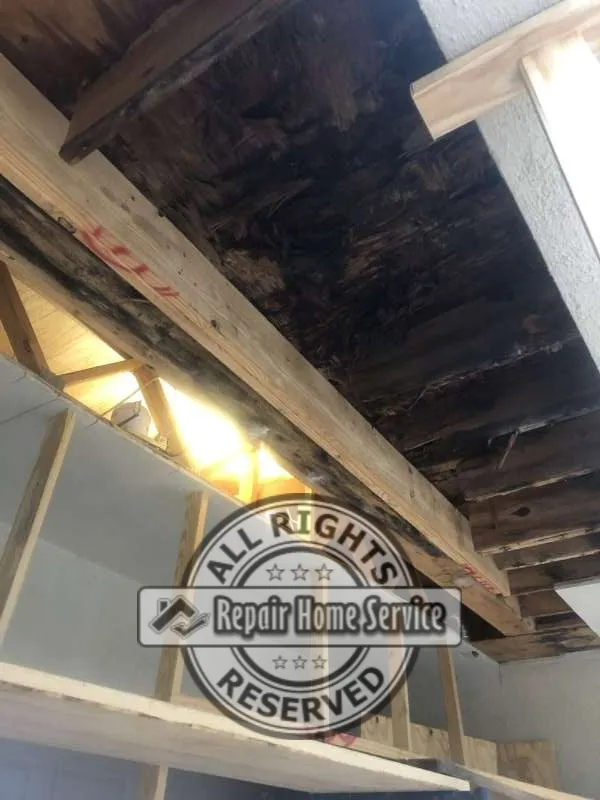

Exposed underside of second-floor patio structure showing water-damaged framing members before reconstruction.

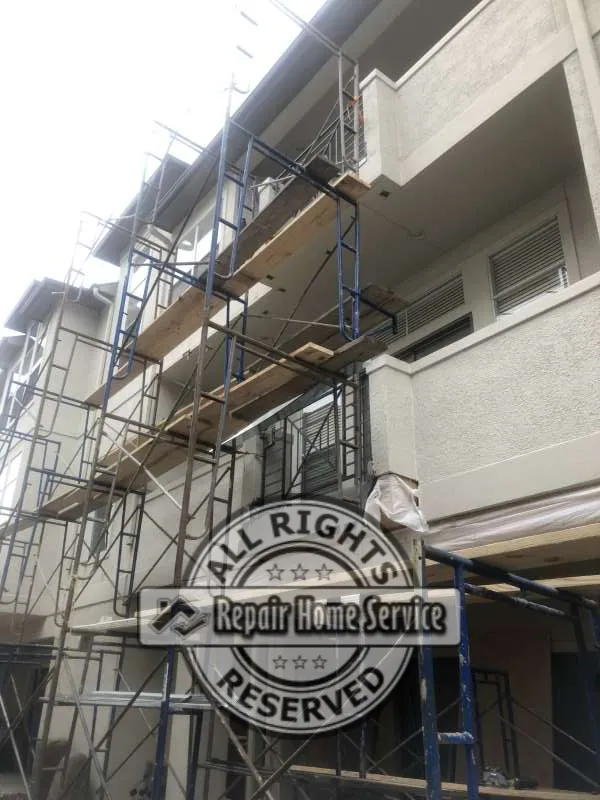

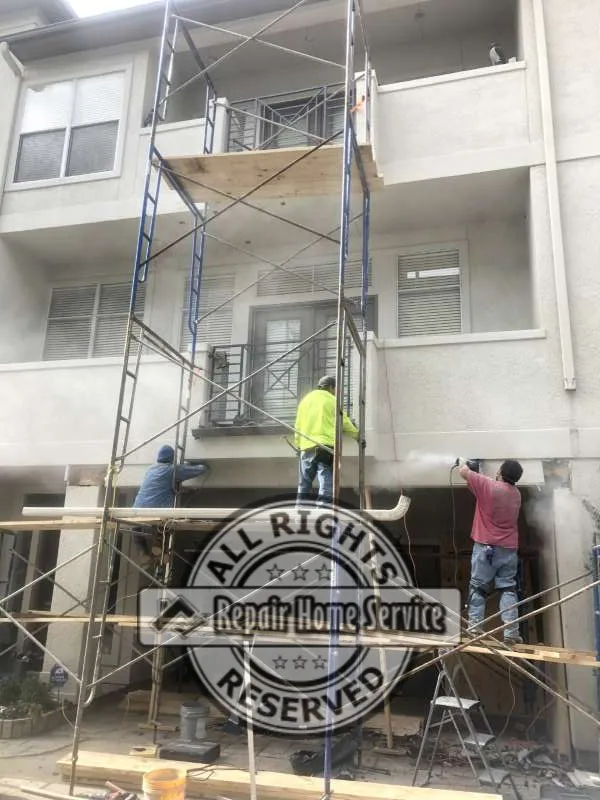

Scaffolding installed at front façade during stucco repair and structural reconstruction project in Houston TX.

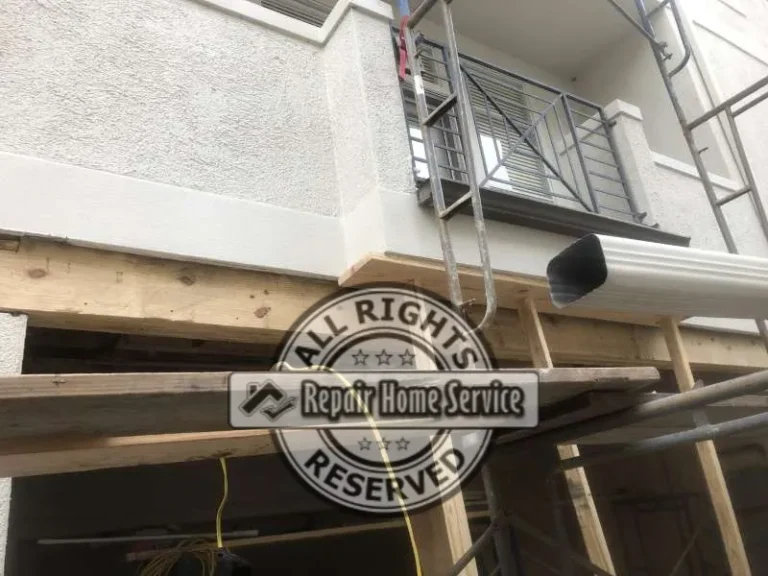

Exterior scaffolding access used for front beam replacement and upper patio waterproofing repairs.

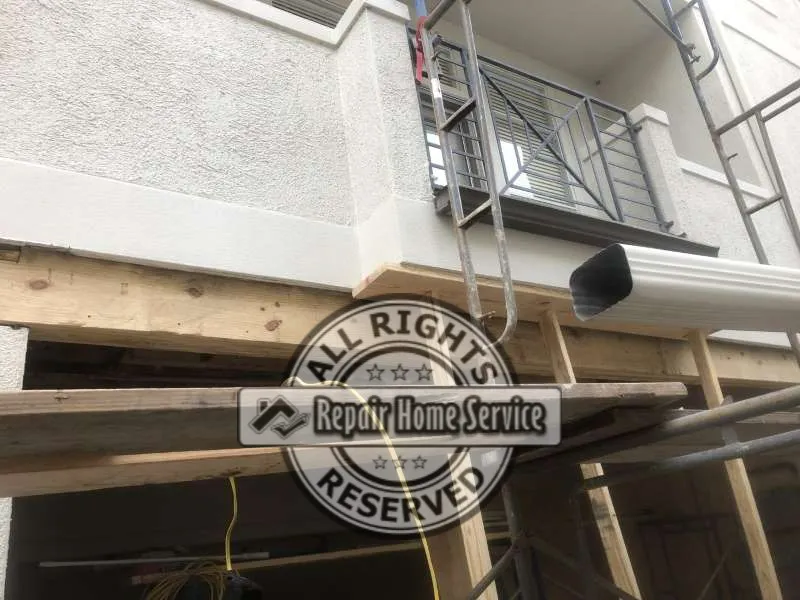

Temporary structural support system installed while damaged front beam and framing components were replaced.

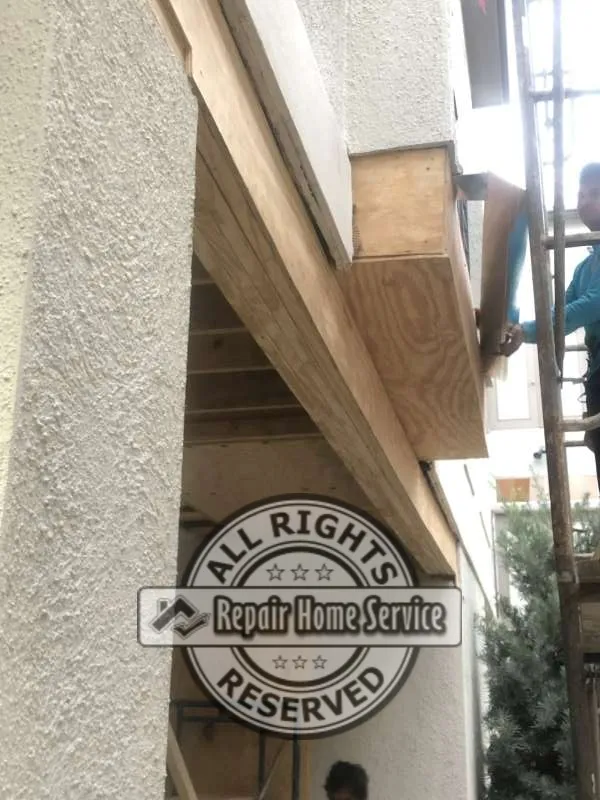

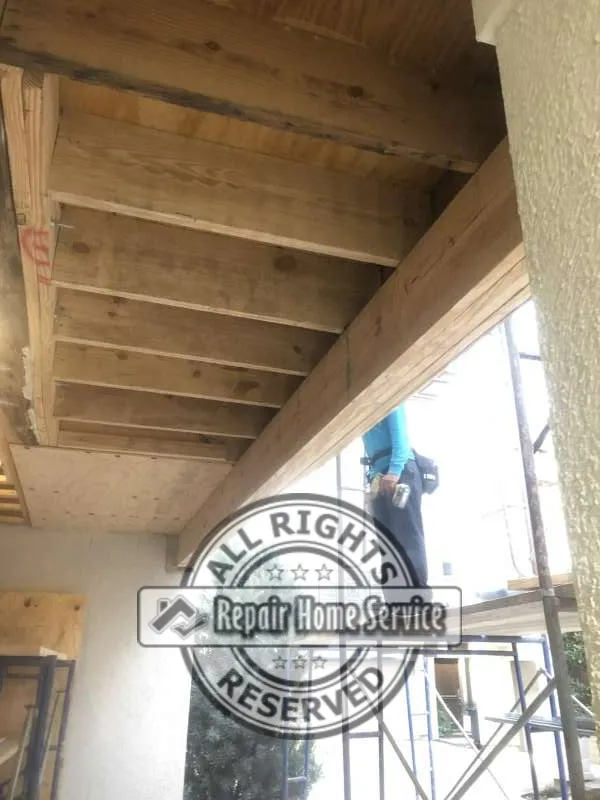

Rebuilt porch ceiling framing with new lumber and structural carpentry before enclosure and stucco restoration.

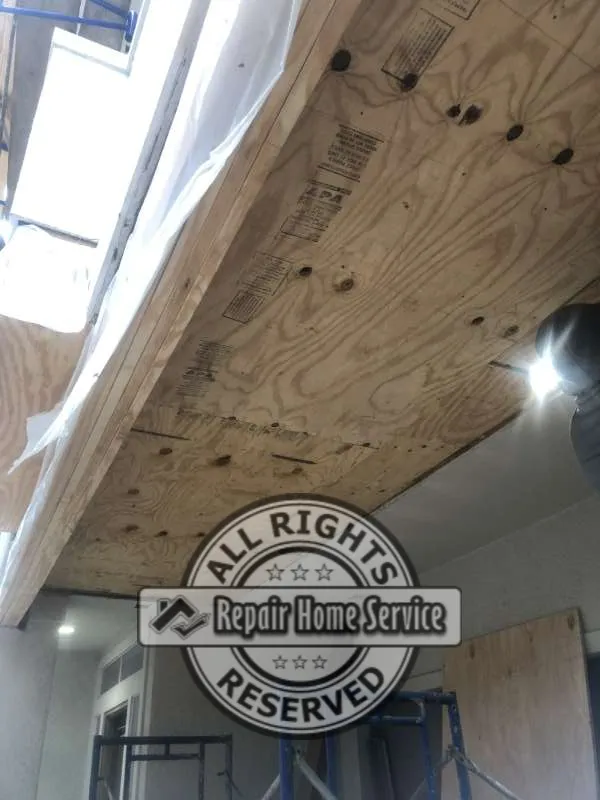

New plywood sheathing installed on reconstructed exterior overhang prior to waterproofing and stucco application.

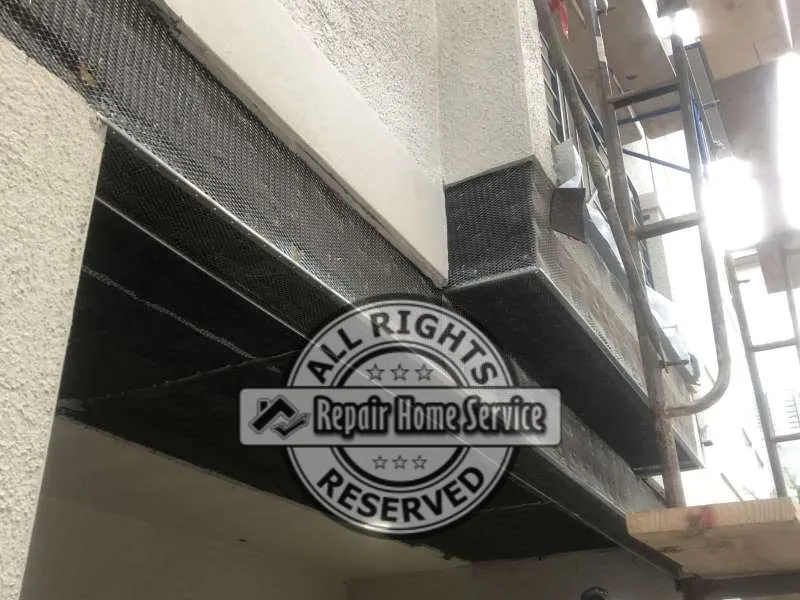

Completed structural reconstruction showing new soffit substrate and framing beneath upper-level patio.

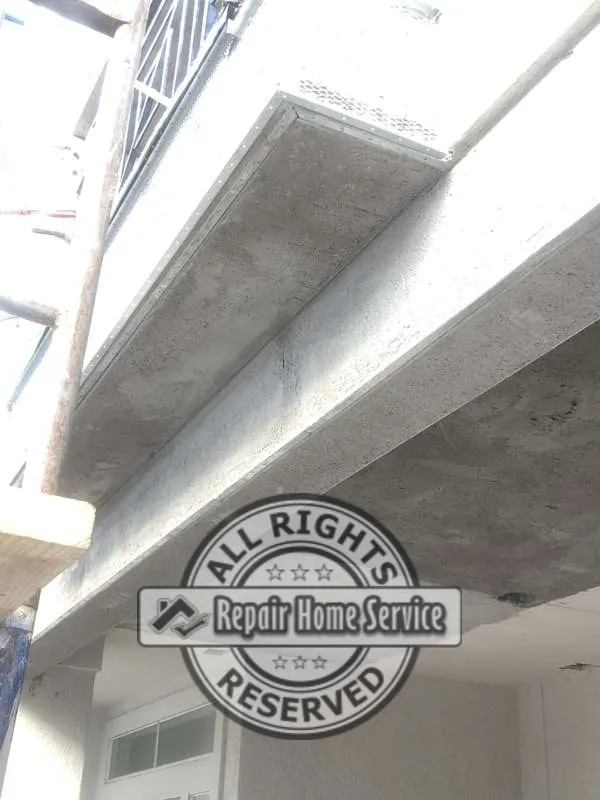

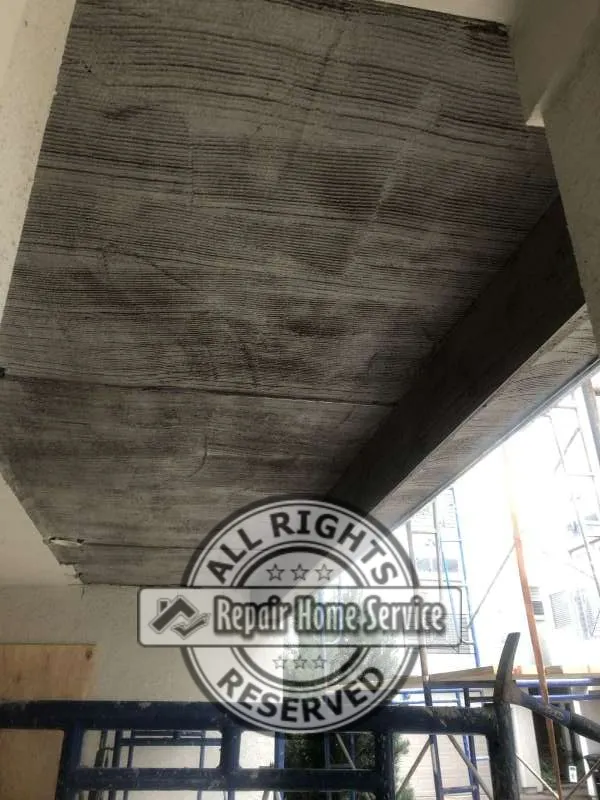

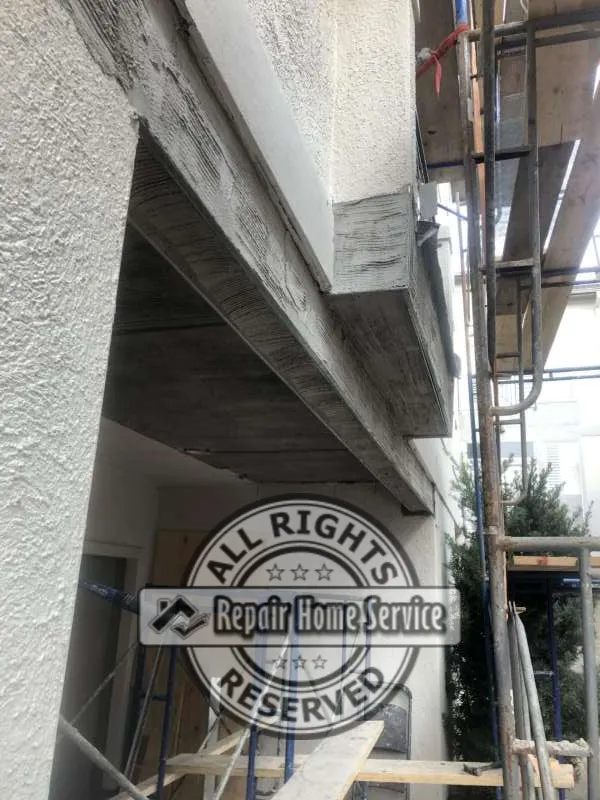

Fresh stucco finish applied to repaired beam and exterior wall assembly after structural restoration.
Newly finished porch beam coated and sealed following stucco repair and exterior waterproofing work.
Completed stucco restoration with smooth exterior finish on front porch overhang of Houston residence.

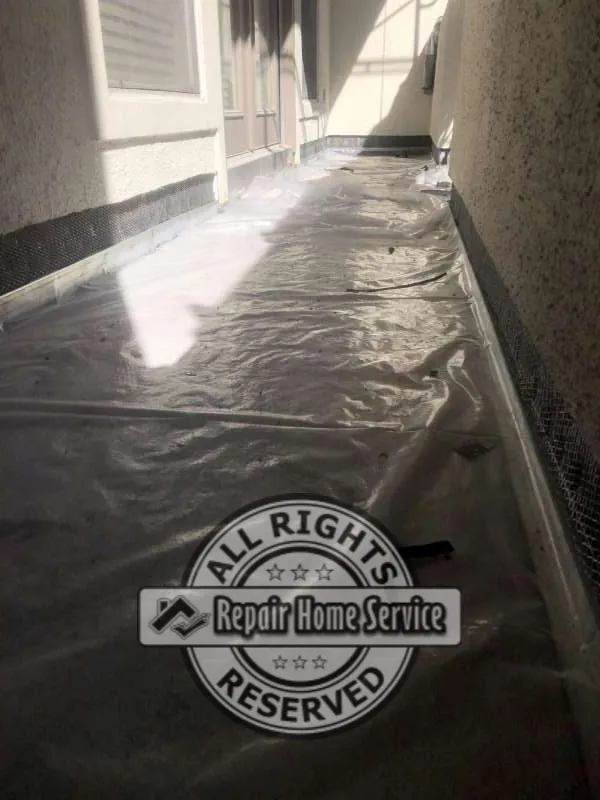

Protected upper patio area during waterproofing and exterior coating installation process.

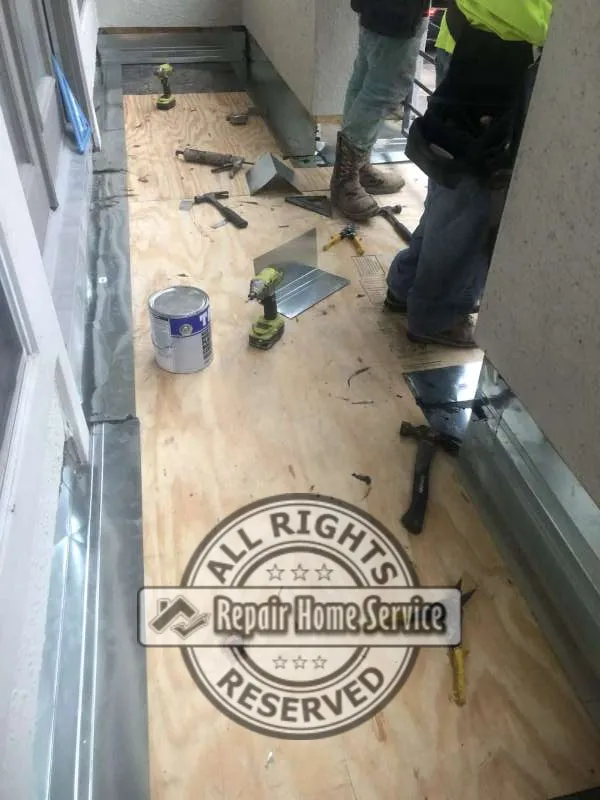

Patio surface preparation and waterproofing work performed above repaired structural framing system.

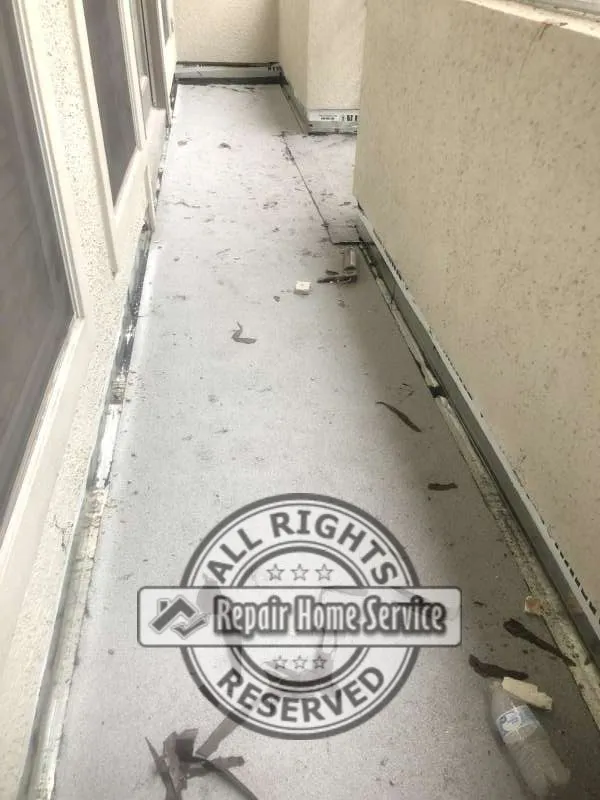

Upper-level patio area after demolition and preparation for new waterproofing and finish installation.

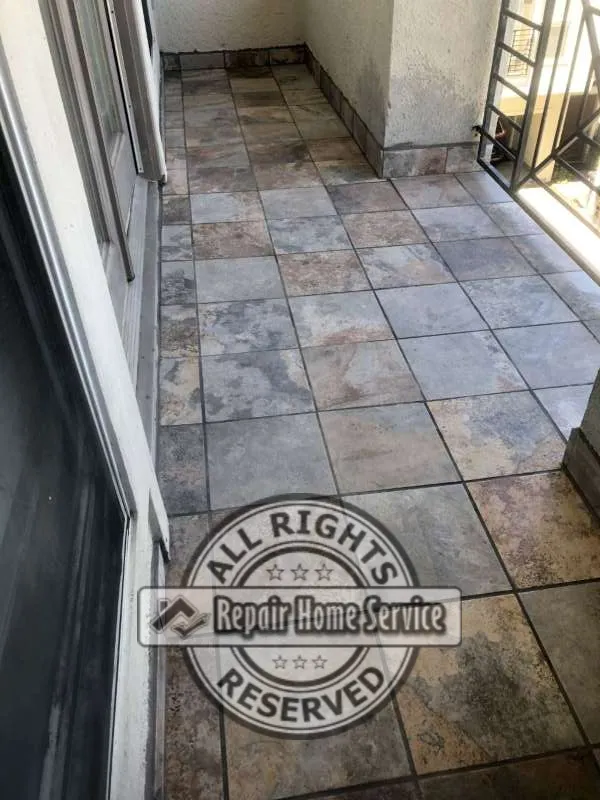

Completed tiled patio surface following waterproofing repairs that resolved water intrusion beneath stucco assembly.
About this project
This project began after the homeowner noticed water dripping from a light fixture located in the center of the front porch ceiling. Since the ceiling below also served as the floor structure for the upstairs patio and living area, a more detailed investigation was necessary to determine the source of the leak.
Once the stucco and ceiling assemblies were opened, extensive moisture damage was discovered within the concealed framing system. Water had been migrating beneath the stucco finish and into the structural components for an extended period, resulting in deteriorated sheathing, damaged framing members, and compromised sections of the garage porch ceiling. To safely complete the repairs, the entire front section of the structure was temporarily supported while the center beam and surrounding damaged components were removed and replaced.
After the structural repairs were completed, the upstairs patio assembly was rebuilt and properly waterproofed to address the root cause of the problem. New sheathing, framing, soffit components, and stucco finishes were installed where required, restoring both the structural integrity and appearance of the home. The project concluded with preparation and painting of the entire front façade using a high-quality 100% acrylic elastomeric coating to provide a uniform finish and an additional layer of protection against Houston's demanding weather conditions.
The result is a safer, more durable exterior system that not only resolved the leak but also restored the home's curb appeal and long-term performance. By addressing the hidden water intrusion rather than simply repairing visible damage, the homeowner gained confidence that the underlying problem had been properly corrected.
What started as a small water drip from a porch light quickly turned into something much bigger than we expected. Once Robert started investigating, he found hidden water damage behind the stucco that had been there for quite some time. He took the time to explain everything, showed us exactly what was causing the problem, and laid out a plan to fix it the right way. The repair ended up involving structural work, replacing damaged framing, installing a new support beam, rebuilding sections of the porch, and waterproofing the upstairs patio that was allowing water to get underneath the stucco. Throughout the entire project, communication was great and we always knew what was happening next. The finished work looks amazing. The stucco blends in perfectly, the paint gave the whole front of the house a fresh look, and most importantly, the leak is gone. It's hard to find contractors who care about solving the actual problem instead of just covering it up, and that's exactly what Robert did. We are extremely happy with the results and would gladly recommend Beyond Home Repair to anyone needing exterior repairs or waterproofing work.
Randy H.
- Performed leak investigation after water was observed dripping from a front porch ceiling light fixture.
- Opened stucco and soffit assemblies to identify the source of water intrusion.
- Removed deteriorated framing, sheathing, and moisture-damaged structural components.
- Installed temporary structural supports to safely carry loads during repairs.
- Replaced the primary front support beam and associated framing members.
- Reconstructed damaged porch ceiling and soffit assemblies.
- Repaired and rebuilt compromised exterior wall and stucco sections.
- Rebuilt portions of the upstairs patio structure affected by moisture intrusion.
- Installed waterproofing system to prevent future water penetration.
- Installed new sheathing and exterior substrate materials where required.
- Applied new stucco finishes to repaired areas.
- Prepared and painted the entire front façade.
- Applied 100% acrylic elastomeric exterior coating for weather resistance.
- Completed cleanup and restoration of affected work areas.
